導熱吸波材設計上不但擁有優良的熱傳導率，更提供柔軟性、壓縮及黏性的選擇，并且降低空氣對熱阻的影響，使用方便，更有絕緣及緩沖的效果，另外還兼顧EMI電磁屏蔽的功能，使客戶研發設計中增加了一個兼容性的選擇。
|
產品特性:
》良好的熱傳導率: 1.0~3.0W/mK
|
|
|
(Applications) : ? (Radiator bottom or frame) ? (High-speed hard disk drive) ? (RDRAM core storage module) ? (Mini heat pipe radiator) ? (Automotive engine control set) ? (Communication harware) ? (Portable type electron device) ? (Semiconductor automatic laboratory equipment) Permeability:
|
|

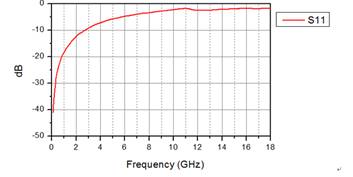

 Test with:WE-EZ10-10 |
|
導熱吸波材規格表 |
||||
|
|
WE-EZ-XXX |
Test Method |
||
|
|
WE-EZ15-XXX |
WE-EZ20-XXX |
|
|
|
Color/顏色 |
灰色(Gray) |
灰色(Gray) |
NA |
|
|
Thickness/厚度 |
0.020”(0.51mm)~ 0.200”(5.08mm) |
0.020”(0.51mm)~ 0.200”(5.08mm) |
ASTM D374 |
|
|
Thickness Tolerance/厚度公差 |
±10% |
±10% |
NA |
|
|
Density (g/cm3)/密度 |
2.45g/cm3 |
2.45g/cm3 |
ASTM D297 |
|
|
Hardness (Shore Type C)/硬度 |
30 +5.0 |
30 +5.0 |
ASTM D2240 |
|
|
Tensile Strength (Mpa)/拉伸強度 |
NA |
0.10 |
0.10 |
ASTM D412 |
|
Continuous Use Temperature (oC)/工作溫度 |
-40oC ~ 150oC |
-40oC ~ 150oC |
NA |
|
|
UL Flame Rating/阻燃等級 |
Meet 94 HB |
Meet 94 HB |
Equivalent UL |
|
|
Thermal Conductivity (W/mk)/ 導熱系數 |
≥1.5W/mk |
≥2.0W/mk |
ASTM D5470 |
|
|
Application of frequency 應用頻段 |
100M-5G |
100M-5G |
NA |
|
|
Permeability 磁導率（5MHZ） |
6 |
6 |
安捷倫E4285A |
|
|
Surface Resistivity (表面阻抗) |
>1MΩ |
>1MΩ |
|
|
GRADE/PART NUMBER:
